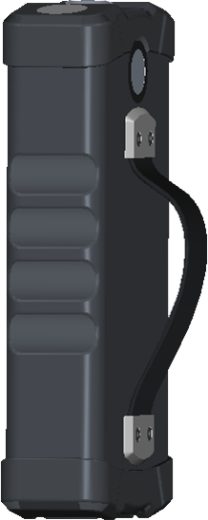

DEU300 EMAT Thickness Gauge

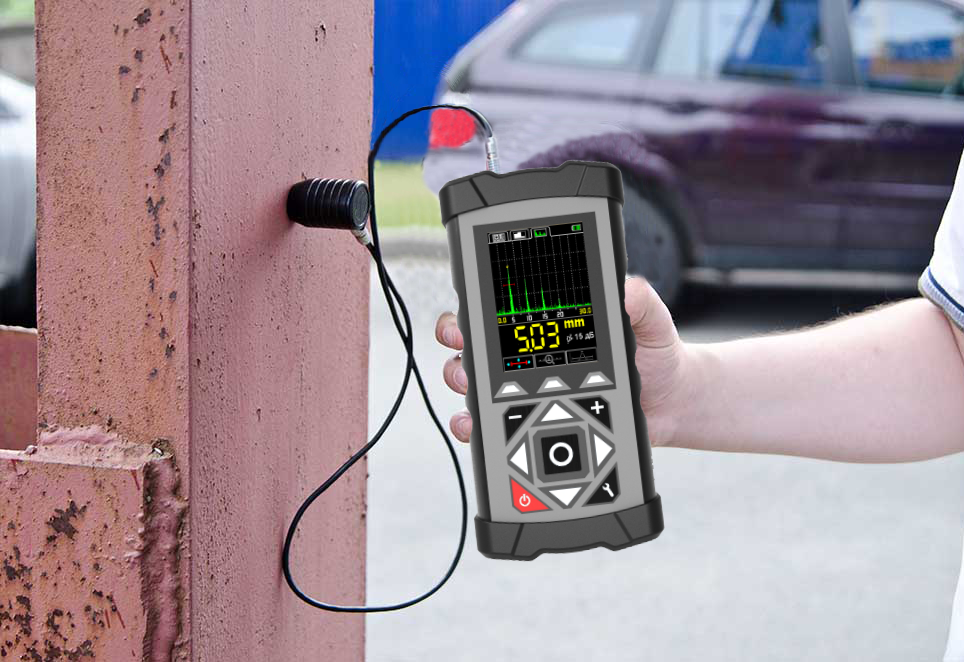

The DEU300 EMA (Electromagnetic Acoustic) thickness gauge provides a non-contact ultrasonic thickness measurement tool for various metallic materials such as steel, stainless steel, aluminum, copper, titanium commonly used in manufacturing, petrochemical, power generation and other industries. The device requires minimum surface preparation for thickness measurement because the EMA transducer has higher tolerance to surface roughness, paint, coating, scale, etc. No need for ultrasonic couplant is another practical feature particularly useful when measuring thickness at high temperature.

DEU300 is a handy and powerful tool for various applications in harsh environment thanks to the compact design, A-/B-scan display, intuitive operation and data management interface.



Key Product Features

No need for surface polishing,penetration of anti-corrosion coating and rust, and no need couplant.

 Thickness measurement can penetrate surface corosion, paint, corroion protection and other coatings up to 4mm.The thickness value of metal objects displayed by the instrument does not need to consider the calculation of coating thickness.

 The normal temperature pulse probe replaces the powerful permanent magnet probe. Completely solves the problem of excessive suction and difficulty in separation of the EMAT probe, making manual inspection easier and safer.

 High temp probe(optional) could inspect high temp workpiece up to 800°C

 With the function of temperature compensation, the actual temperature range of high-temperature components can be input to automatically compensate the change of sound velocity, making the thickness measurement more accurate.

 Measurement non-verticality (sensor/probe perendicular to the object being measured):±25° ,which requires less perpendicularity after the probe is placed.

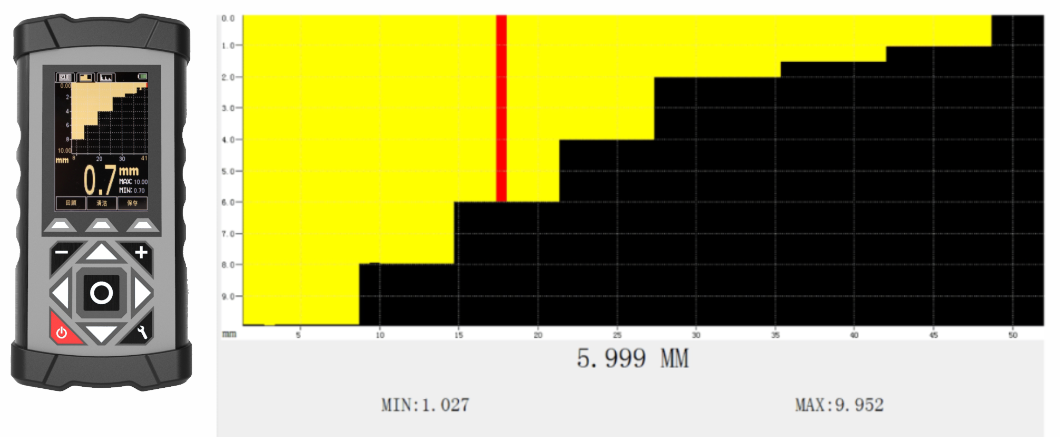

 It has the function of displaying, storing and querying thicknes measurment results in the form of A-scan and (time-based) B-scan images,making it convenient for users to set measurement parameters such as gates, thickness measurement modes, and signal processing.

 Using expert intelligent algorithm,tere are three thickness measurement modes: automatic mode. single gate manual mode (single peak value method),double gate manual mode(peak value method).It greatly reduces the influence of human factors and simplifies the operation steps.

 Built-in database of basic material s-wave sound velocity, and can customize s-wave sound velocity value.

 It can store 50,000 thickness values and 4,000 A-scan or B-scan data.

 The back is integrated with bright LED light, which is convenient for on-site lighting.

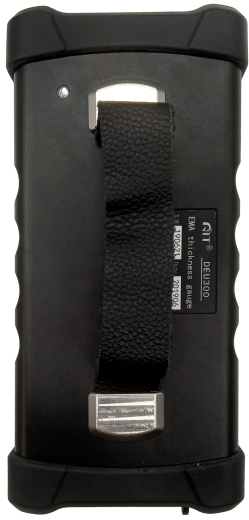

 A wrist band is integrated on the back for easy one-handed operation.

 AC-DC hybrid power supply, built-in rechargeable lithium battery can work continuously ≥9 hours.

 Measurement data can be transferred to PC via USB for analysis and management.

 Fully sealed IP66 dustproof and waterproof design, silicone sheath anti-drop and anti-vibration design,better suited for harsh working conditions.

Technical Parameters

 Thickness measurement: accuracy 0.04mm with range 1.5-100 mm(steel, stainless steel), 0.1mm with range 100-200 mm(steel, stainless steel).

 Working gap/lift: normal temperature permanent magnet probe ≤4mm, normal temperature pulse probe ≤2mm,high temperature permanent magnet probe ≤4mm.

 Measurement unverticality (transducer/probe normal to the object under test) : ±25°

 Excitation frequency: 3.0~3.9MHz Measuring data speed :16~1/s

 Minimum diameter of curvature: ≥4mm

 Sound speed range: 1,000~9,999 m/s, adjustment increment 1m/s

 Gate function: automatic gate, manual single gate, manual double gate

 Display: color LCD, 3.5 inch /320 x 480 pixel

 Communication interface: USB2.0

 Size and Weight: height 195 x width 90 x thickness 40mm, ≤690g

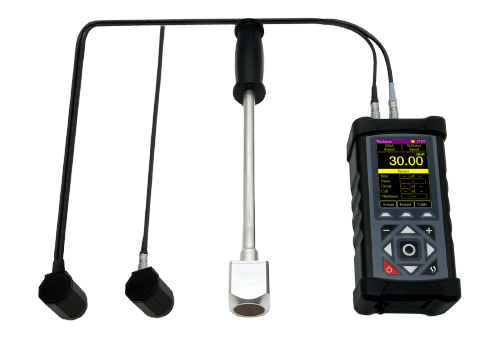

 Ambient pulse EMAT probe: pulse type electromagnet, the magnetic sucion≈0N, circular Φ30 x high 44mm, weight≤60g, cable0.8 m

 Ambient temperature magnetic probe: weak or less permanent magnets, the magnetic suction ≈15N, circular Φ30 x high 44mm, weights≤80g, cable 0.8 m

 Hich temperature permanent magnetic probe: the magnetic suction≈20N, circular Φ37 X variable length handle( three lengths of 52/210/302mm) weight ≤370g,cable length 0.8 m

 Operating temoerature: Ambient temperature probe -10~+40℃, high temperature probe -23~+700'C (-23~+310℃ can be continuously measured without special cooling; At +310~700℃, each measurement time ≤5s, cooling interval time≥15s)


Range accuracy test (1-200mm, carbon steel, stainless steel)

Three kinds of probe working gap /lift test

Three kinds of probe small diameter tube Φ6×2mm test

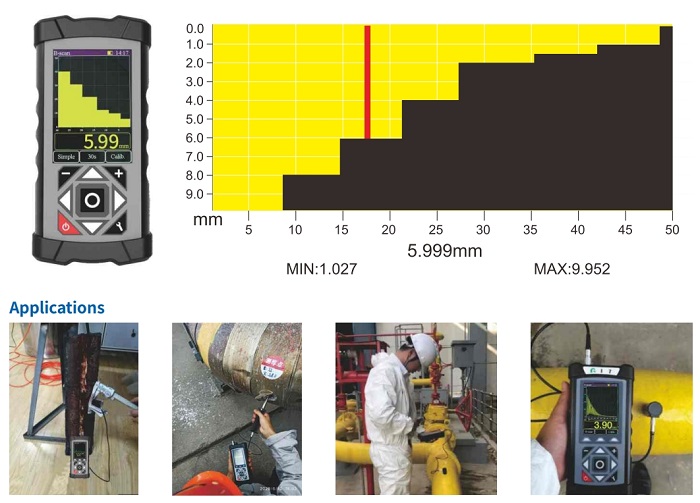

B scan, paint and rusty pipe test

-25~+700℃ accuracy test , 20mm Carbon steel, Stainless steel
